Business Areas

Connected Insight delivers integrated vision technology
optimized for diverse industries.

Food & Pharmaceutical Sterilization / Packaging Lines

Food & Pharmaceutical Sterilization/Packaging Lines

IV Solution Manufacturing Line

IV solution manufacturing line equipment layout
Product 1,000ml, 500ml IV solution
Capacity 7,000 bags / hr equipment configuration
Stage Process Main Equipment
Stage 1 Filling & Quality Inspection IV bag Filling Machine, Leak Tester, Vision Inspector
Stage 2 Pre-Sterilization Over Wrapping (Packer), Tray Loader, Tray Stacker
Stage 3 Sterilization RGV System, Sterilizer
Stage 4 Post-Sterilization Tray Unstacker, Tray Unloader
Stage 5 Packaging & Logistics IV bag Box Packaging, Palletizing, RGV System, AS/RS

Food & Pharmaceutical Sterilization/Packaging Lines

Food (HMR) RETORT LOGISTICS SYSTEM

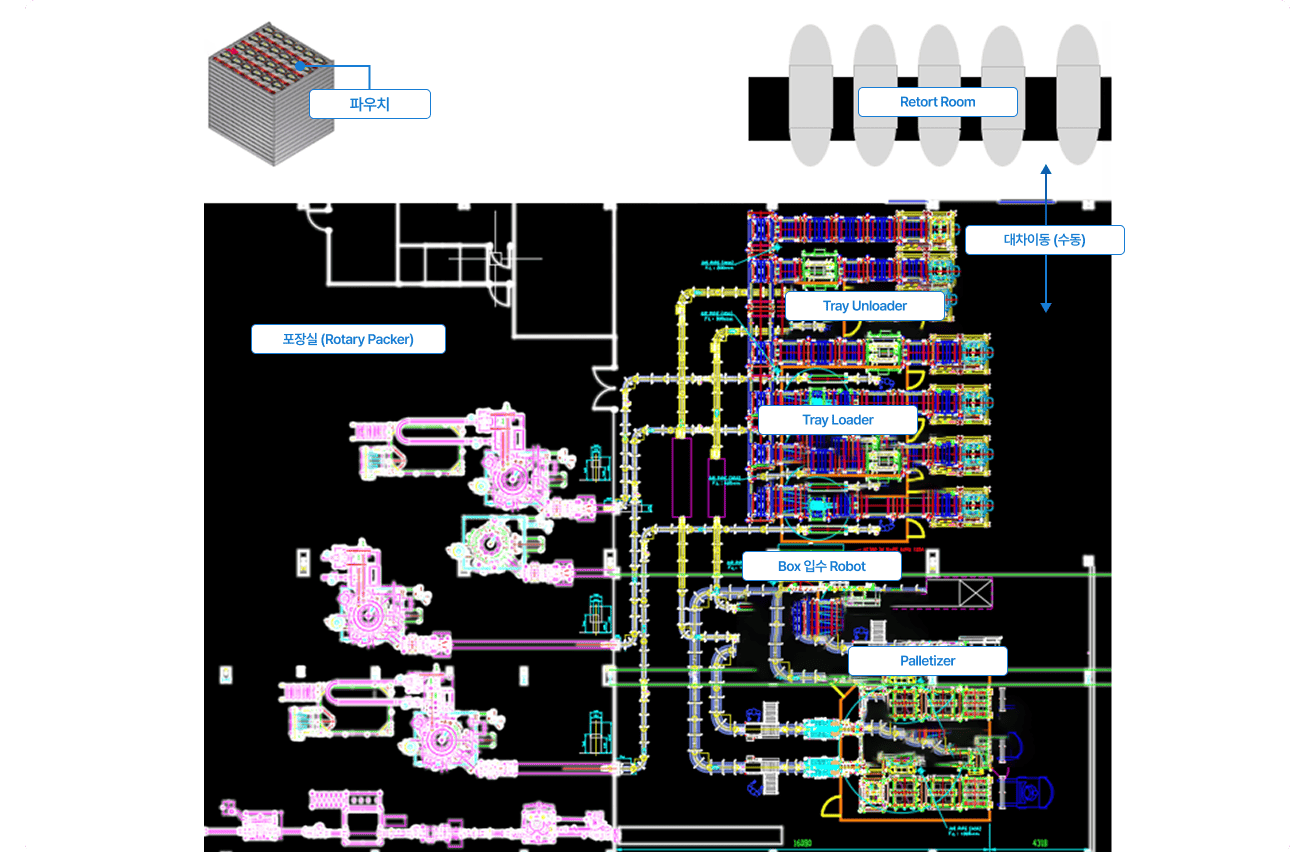

Food HMR Retort Logistics System equipment layout
Product Pouch (retort sterilizer — Company H and others)
Capacity 3,600 pouch/hr/Line (3 lines total: 10,800 pouch/hr) equipment configuration
Stage Process Main Equipment
Stage 1 Packaging Machine Feeding Conveyor, Pouch Counter
Stage 2 TRAY LOADER Tray Loading Robot, Tray Stacker
Stage 3 RETORT Retort Sterilizer (Company H and others)
Stage 4 TRAY UNLOADER Tray Unloader, Tray Unstacker, Pouch Counter
Stage 5 Box Loading Box Loading Robot
Stage 6 PALLETIZING Palletizing Robot
