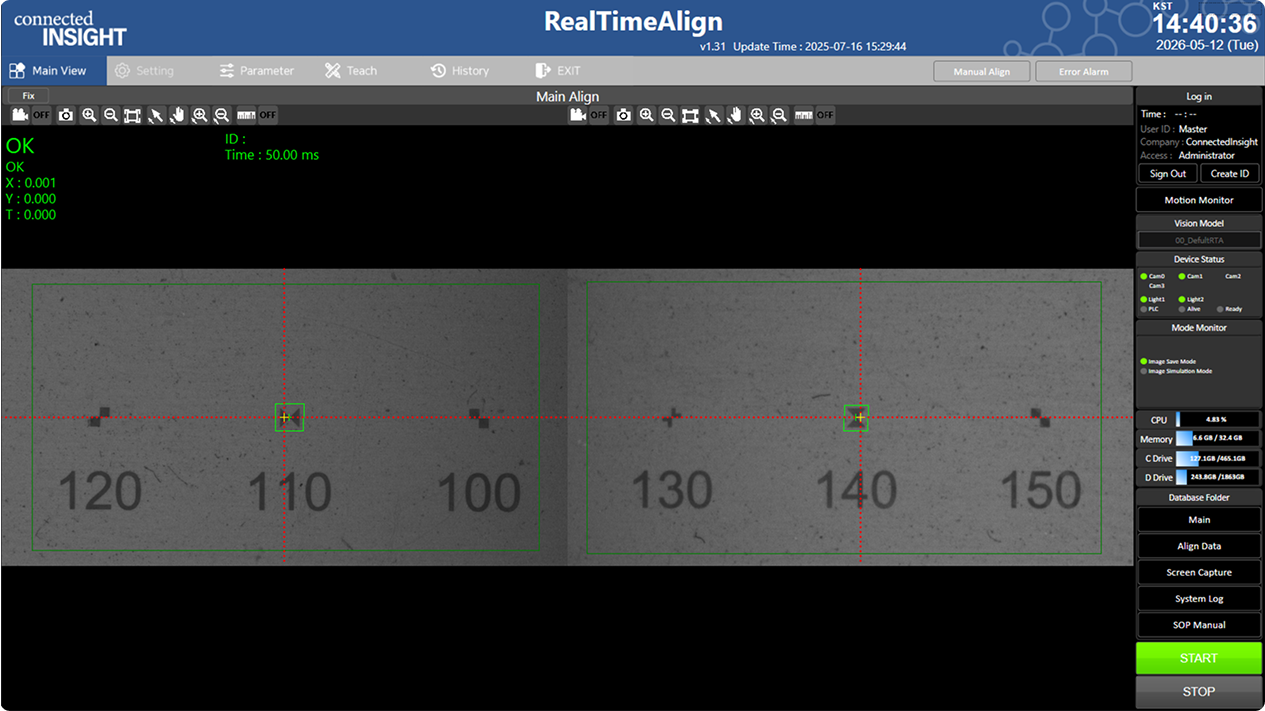

High-speed Align Solution
High-speed Align Solution Applied Technologies
-
Vision Align at 100+ cycles per second for high-speed production lines
-
Real-time PC control of the stage for immediate position error correction
-
Real-time compensation for equipment vibration and misalignment to maintain high precision
High-speed Align Solution Applications
Vision and Motion are integrated into one system to perform image acquisition, position calculation, and motion correction in real time.
By minimizing equipment vibration and mechanical deviation, it improves align precision and yield on high-speed production lines.
-
Display
Panel -
Semiconductor
Inspection Equipment -
PCB
Inspection Equipment -
Secondary Battery
Manufacturing Equipment -
Precision Transfer
System

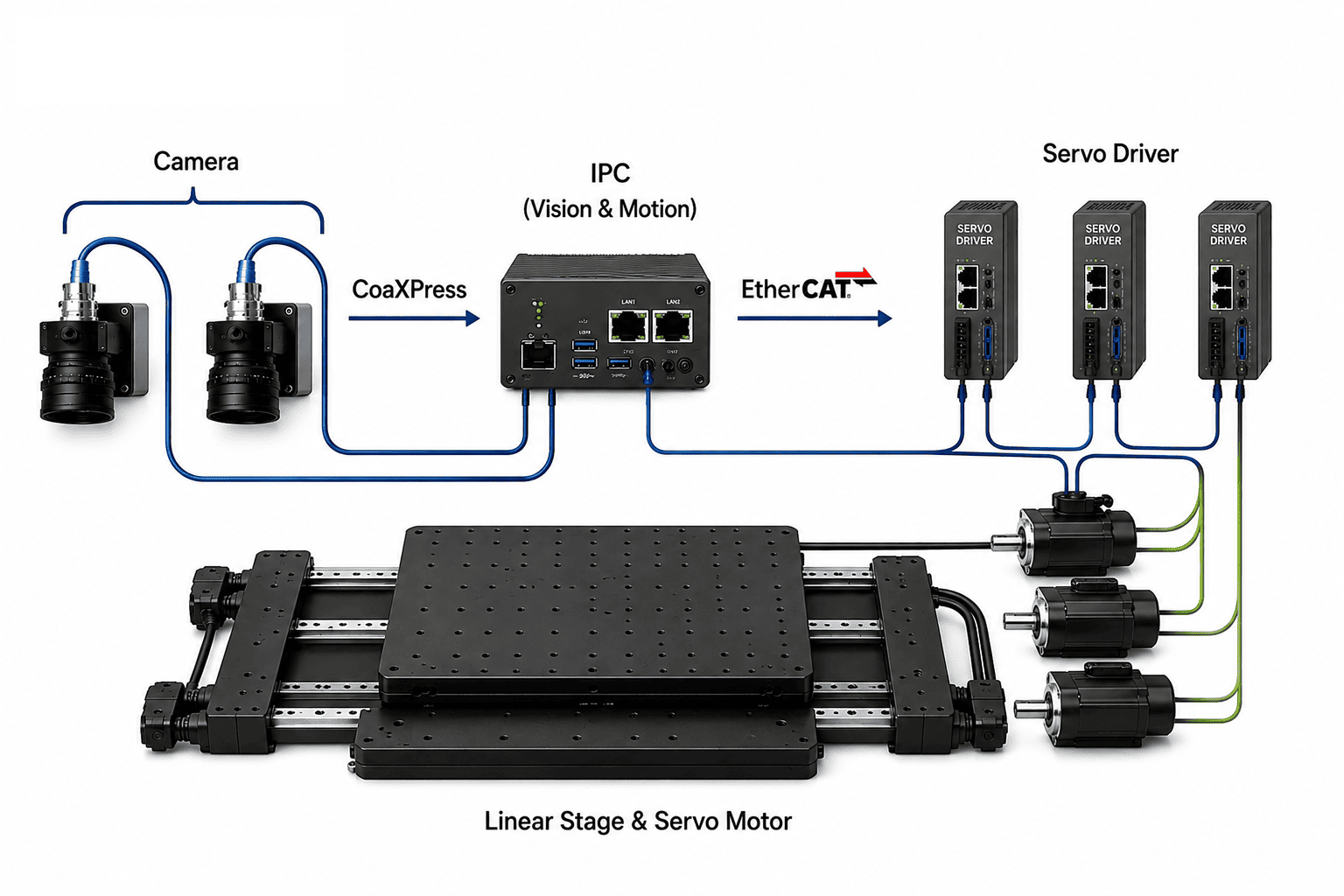

High-speed & High-precision Vision Alignment System
Minimize equipment alignment error to reduce defect rates, improve productivity through high-speed production, and shorten maintenance and setup time.
- Image Acquisition 20+ times/sec
- Align Mark Detection High-precision mark recognition
- Real-time Position Calculation Instant error calculation
- Motion Correction Real-time feedback control
- Alignment Complete Maintained precision
